99.999% Purity Yttrium Oxide Powder (Y2O3) Optical Coating Grade 0.5-3 mm Granules for Thin Film Deposition
Подробная информация о продукте:
| Место происхождения: | Цзянси, Китай |
| Фирменное наименование: | High Broad |
| Сертификация: | ISO 9001:2015, REACH, RoHS |
| Номер модели: | Y2O3-5N |
Оплата и доставка Условия:
| Количество мин заказа: | 1 килограмм |
|---|---|
| Цена: | USD 120-280 / Kilogram |
| Упаковывая детали: | Вакуумно запечатанный внутренний мешок высокой чистоты с влагонепроницаемым слоем из алюминиевой фол |
| Время доставки: | 5-15 рабочих дней после подтверждения заказа |
| Условия оплаты: | Т/Т, Л/К, ПайПал, западное соединение |
| Поставка способности: | 2000 кг в месяц |
|
Подробная информация |
|||
| Размер частиц: | 0,5-3 мм (в форме таблеток/гранул) | Диапазон передачи: | 0,25-8 мкм |
|---|---|---|---|
| Кристаллическая структура: | Кубический | Чистота: | 990,999% (5N) |
| Индекс преломления: | 1,93 при 500 нм | Точка плавления: | 2425 °C |
| Выделить: | 5N Optical Grade Y2O3,Thin Film Coating Material,Lens Anti-Reflection Powder |
||
Характер продукции
99.999% (5N) Yttrium Oxide (Y₂O₃) Optical Coating Grade Powder
Our 99.999% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This optical coating grade Y₂O₃ powder is specifically engineered for electron beam and ion-assisted deposition of anti-reflection and high-reflection optical thin films, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- 99.999% ultra-high purity eliminates absorption losses in visible and IR wavelength ranges
- Available in tablet and granule form (0.5-3 mm) optimized for consistent e-beam evaporation rates
- High refractive index (1.93 at 500nm) provides excellent optical performance in multilayer coatings
- Wide transmission range from 0.25 μm to 8 μm covering UV, visible, and mid-IR applications
- RoHS compliant with traceable Certificate of Analysis for every production batch
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size | 0.5-3 mm (tablet/granule) |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Refractive Index | 1.93 at 500nm |
| Transmission Range | 0.25-8 μm |
| Appearance | White to Off-White Granules |
| Melting Point | 2425 °C |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.

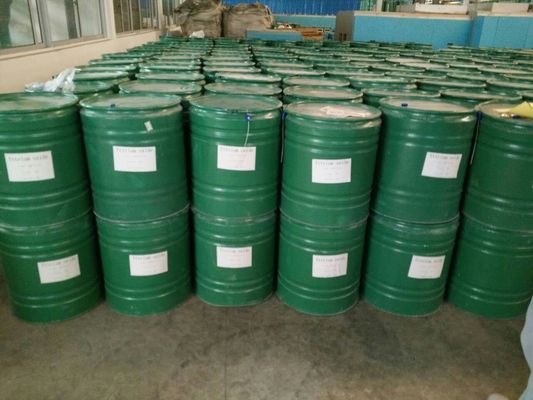

Packaging & Storage
Vacuum sealed high-purity inner bag inside aluminum foil moisture barrier bag. Packed in 5kg or 25kg fiber drums. Store in clean, dry environment at 15-25°C. Keep away from organic solvents and strong acids.
