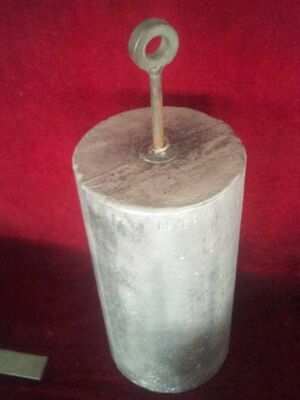

Prepackaged Magnesium Sacrificial Anode with High Potential M1C Alloy and XLPE Insulated Cable for 15-25 Years Pipeline Cathodic Protection
Подробная информация о продукте:
| Место происхождения: | Китай |
| Фирменное наименование: | High Broad |
| Сертификация: | ISO 9001, ASTM G97 |
| Номер модели: | МГ-ПП-175 |
|
Подробная информация |
|||
| Состав засыпки: | 75% гипс, 20% бентонит, 5% сульфат натрия. | Марка сплава: | M1C/AZ63B (высокий потенциал) |
|---|---|---|---|
| Потенциал разомкнутой цепи: | От -1,70 В до -1,75 В (по сравнению с Cu/CuSO4) | Текущая эффективность: | >= 50% (ASTM G97) |
| Спецификация кабеля: | Медный кабель AWG с изоляцией из сшитого полиэтилена 10 мм² | Срок службы: | 15-25 лет (в зависимости от удельного сопротивления почвы) |
| Выделить: | Prepackaged Magnesium Anode Backfill System,XLPE Cable Sacrificial CP Anode,Long Service Life Pipeline Protection |
||
Характер продукции
Prepackaged Magnesium Sacrificial Anode Gypsum Bentonite Backfill XLPE Cable for Pipeline Cathodic Protection
Our prepackaged magnesium sacrificial anode is a complete turnkey corrosion protection solution designed for underground pipelines, storage tanks, and buried steel structures. Each unit comes factory-assembled with premium backfill material and XLPE insulated cable, ready for immediate field installation.
Key Advantages
Prepackaged Backfill System
Each anode is pre-assembled in a durable cotton cloth bag filled with a precisely formulated backfill mixture: 75% Ground Hydrant Gypsum, 20% Powdered Bentonite, 5% Hydrated Sodium Sulfate. This optimized composition ensures uniform current distribution and reduces anode-to-earth resistance.
Premium XLPE Cable Connection
Equipped with XLPE insulated AWG copper cable (standard 10mm²). XLPE insulation provides superior moisture resistance compared to standard PVC cables. Low-resistance welded connection ensures reliable current delivery.
15-25 Years Service Life
Manufactured from high-purity M1C grade magnesium alloy, our anodes deliver an open circuit potential of -1.70V to -1.75V with >=50% current efficiency per ASTM G97. Uniform consumption ensures predictable long-term protection.
Full Certification & Environmental Compliance
ISO 9001 certified, ASTM G97 and GB/T 17731-2015 tested. RoHS and REACH compliant for global markets. Mill test certificates with every shipment.
OEM & Custom Manufacturing
Self-manufacturing factory with integrated production from raw magnesium ingot to finished anode. Custom dimensions, cable specs, backfill formulations, private labeling available. Engineering support for CP system design.
Technical Specifications
| Anode Type | High Potential Prepackaged Magnesium |
|---|---|
| Alloy Grade | M1C / AZ63B |
| Open Circuit Potential | -1.70V to -1.75V (vs Cu/CuSO4) |
| Current Efficiency | >= 50% (ASTM G97) |
| Current Capacity | ~1200 A·h/kg |
| Backfill | 75% Gypsum + 20% Bentonite + 5% Na2SO4 |
| Cable | XLPE Insulated AWG Copper, 10mm² |
| Service Life | 15-25 years |
| Standards | ASTM G97, GB/T 17731-2015 |
| Packaging | Wooden case with waterproof inner layer |
Applications
- Underground oil & gas transmission pipelines
- Buried storage tank cathodic protection
- Water pipeline networks
- Buried steel structure protection
Why Choose Us
- Self-Manufacturing Factory with full quality traceability
- 15+ Years professional magnesium anode export experience
- ISO 9001 certified, ASTM G97 batch testing
- OEM flexibility: custom sizes, cables, backfill, labeling
- Free CP design consultation and engineering support
- 100 mt/month capacity for reliable on-time delivery
